Autel Alignment 12K Scissor Lift 12,000 lb Hydraulic Alignment Lift with Dual Jacking Beams, ALI Certification, LED Lighting & Air Tire Inflation System

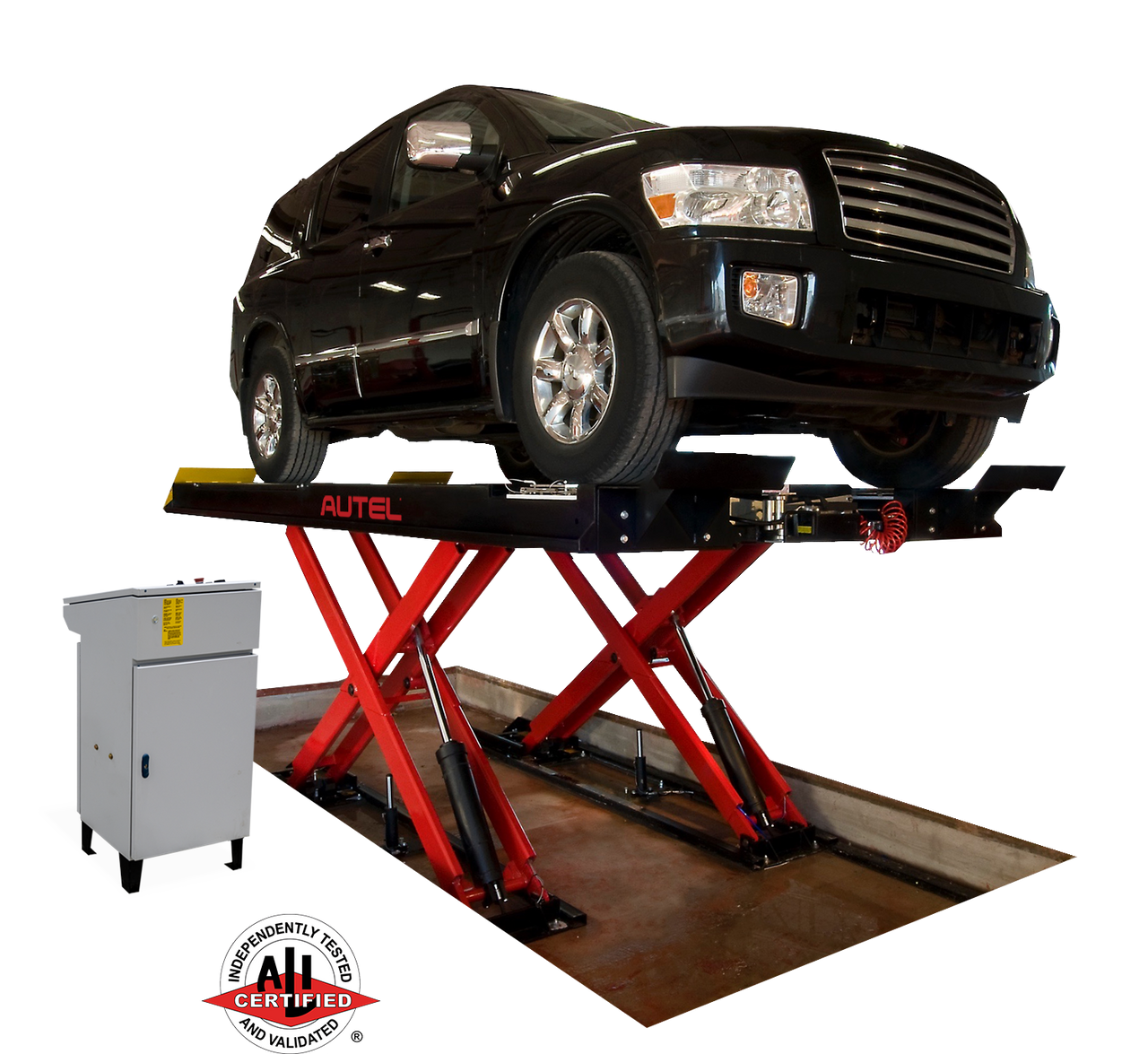

Autel Alignment 12K Scissor Lift
The Autel Alignment 12K Scissor Lift is a premium 12,000 lb capacity hydraulic alignment lift engineered for professional automotive repair facilities, wheel alignment shops, and dealerships. Designed for both flush-mounted and surface-mounted installation, this heavy-duty alignment lift delivers exceptional stability, accuracy, and durability for passenger vehicles and light trucks.
Built in North America and ALI Certified, the lift features extra-wide reinforced runways, integrated air tire inflation systems, stainless steel alignment components, dual jacking beams, and shatterproof LED lighting. Its robust construction and advanced design help technicians perform precise wheel alignments while maximizing shop efficiency and long-term reliability.
Key Features & Benefits
12,000 lb Lifting Capacity
Heavy-duty hydraulic lifting system designed to accommodate:
- Passenger vehicles
- SUVs
- Crossovers
- Light-duty trucks
- Commercial fleet vehicles
Flush-Mount or Surface-Mount Installation
Flexible installation options allow seamless integration into new or existing workshop layouts.
Dual Jacking Beams Included
Includes two high-capacity jacking beams for:
- Wheel-free service operations
- Suspension repairs
- Brake maintenance
- Alignment adjustments
Precision Alignment Design
Engineered specifically for accurate wheel alignment procedures with:
- Stainless steel front radius plates
- Rear slip plates
- Turn plate pocket protectors
- Reinforced runway construction
Heavy-Duty Double-Wide Runways
Features:
- 185-inch long runways
- 26-inch wide runways
- Integrated structural "Z" rail reinforcement
- Reduced runway flex and sagging
- Enhanced alignment accuracy
Front & Rear Opening Runways
Equipped with:
- Flip-down wheel stops
- Easy vehicle access
- Improved technician workflow
Built-In Air Tire Inflation System
Integrated air inflation outlets located at each wheel position for convenient tire service and alignment preparation.
Shatterproof LED Lighting System
Includes:
- 24-inch LED lighting kit
- Automatic shut-off functionality
- Enhanced under-vehicle visibility
Industrial-Grade Durability
Built with:
- Premium double-baked powder-coated finish
- Krown industrial rust-proofing treatment
- Stainless steel air lock release system
- Reduced maintenance requirements
- Long service life
Professional Control System
Features an enclosed console control power unit for safe and efficient lift operation.
ALI Certified & North American Made
Manufactured to meet rigorous industry standards for safety, quality, and performance.
Technical Specifications
| Specification | Details |
|---|---|
| Lift Type | Hydraulic Alignment Scissor Lift |
| Installation | Flush-Mounted / Surface-Mounted |
| Capacity | 12,000 lbs |
| Runway Length | 185 Inches |
| Runway Width | 26 Inches |
| Jacking Beams | Two Included |
| Lighting | Shatterproof LED Lighting |
| Air System | Built-In Tire Inflation Kit |
| Certification | ALI Certified |
| Country of Manufacture | North America |
Ideal For
- Wheel Alignment Shops
- Automotive Repair Facilities
- Dealership Service Centers
- Fleet Maintenance Facilities
- Tire Service Centers
- ADAS Calibration Centers
Package Includes
- Autel 12K Alignment Scissor Lift
- Two High-Capacity Jacking Beams
- Stainless Steel Front Radius Plates
- Rear Slip Plates
- Built-In Air Inflation System
- LED Lighting Kit
- Enclosed Control Console
- Wheel Stops
- Installation Components
Warranty
- 1-Year Limited Warranty on Lift Parts
- 5-Year Warranty on Hydraulic Jack Components
- 90-Day Warranty on Turn Plates, Slip Plates, Bearings, Air Kits, and LED Lighting Components
