Autel Hyundai / Kia 360° AVM Calibration Pattern CSC1004-04

The Autel Hyundai / Kia 360° AVM Calibration Pattern CSC1004-04 is a precision-engineered calibration target designed for Around View Monitoring (AVM) and 360-degree surround-view camera system calibration on compatible Hyundai and Kia vehicles. Developed to support advanced driver assistance systems, this specialized calibration pattern helps technicians accurately align vehicle cameras and restore optimal performance of the surround-view monitoring system.

Modern AVM systems utilize multiple cameras positioned around the vehicle to create a seamless bird's-eye view, helping drivers navigate parking spaces, tight environments, and low-speed maneuvers with greater confidence. Proper calibration is essential after collision repairs, camera replacement, windshield replacement, mirror replacement, suspension work, or any service that may affect camera positioning.

Manufactured to meet Hyundai and Kia calibration requirements, the CSC1004-04 provides the precise target pattern needed for accurate camera calibration procedures. When used with compatible Autel ADAS Calibration Systems, it helps ensure proper camera alignment, accurate image stitching, and reliable 360-degree vehicle monitoring performance.

Designed for professional workshop environments, this calibration target delivers consistent, repeatable, and OEM-level results. It is ideal for dealerships, collision repair centers, automotive diagnostic facilities, and ADAS calibration specialists seeking dependable calibration accuracy and workflow efficiency.

By maintaining proper AVM system functionality, the Autel CSC1004-04 helps improve driver visibility, parking assistance performance, and overall vehicle safety.

Key Features:

• Designed for Hyundai and Kia 360° AVM system calibration
• Supports Around View Monitor (AVM) and surround-view camera systems
• Precision calibration pattern for accurate camera alignment
• Helps restore OEM-level AVM performance
• Essential after camera replacement and collision repairs
• Improves image stitching and surround-view accuracy
• Compatible with Autel ADAS Calibration Systems
• Durable professional-grade construction
• Ideal for dealerships, collision centers, and ADAS workshops
• Supports advanced vehicle safety and parking assistance systems

What's Included:

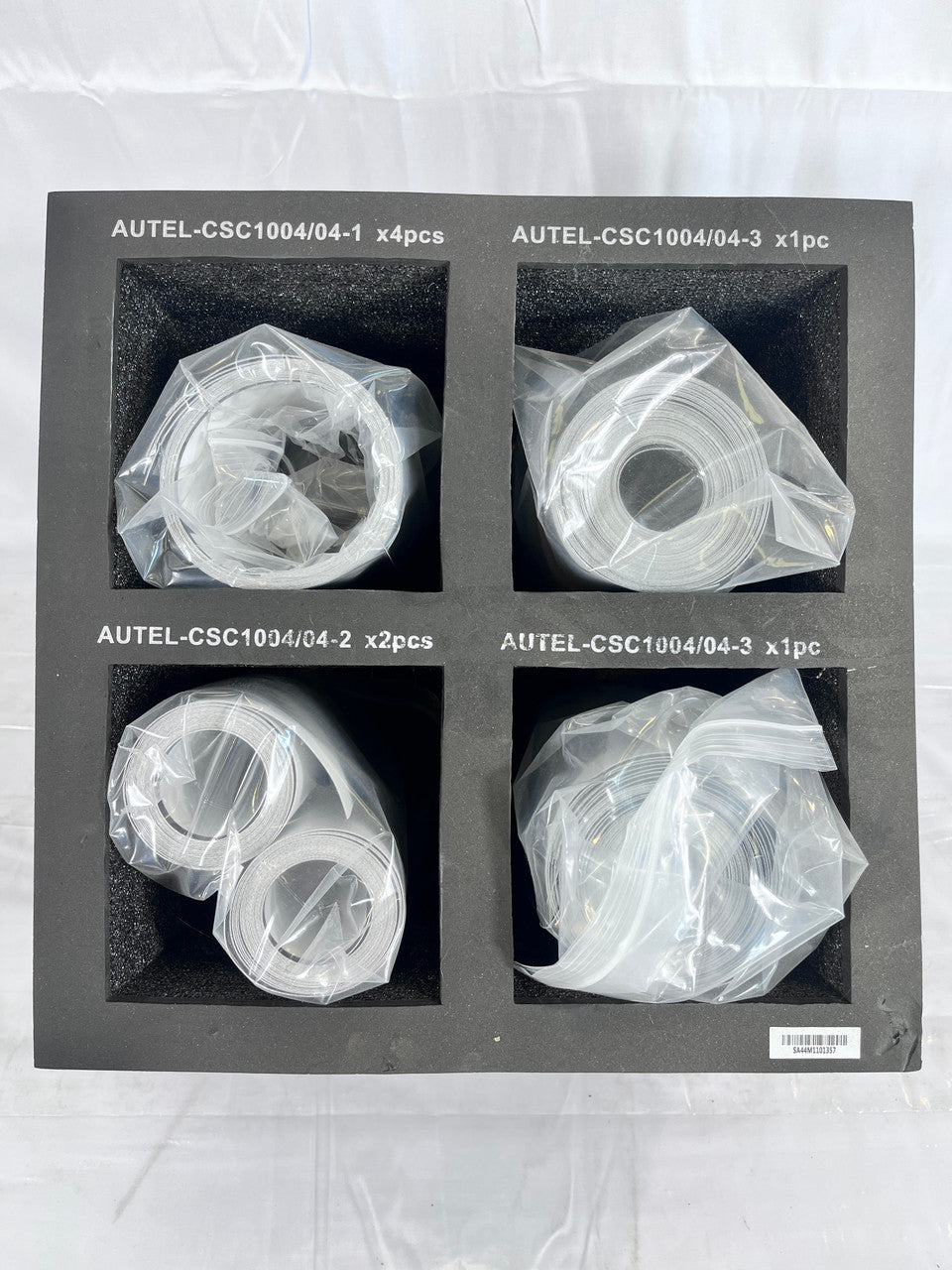

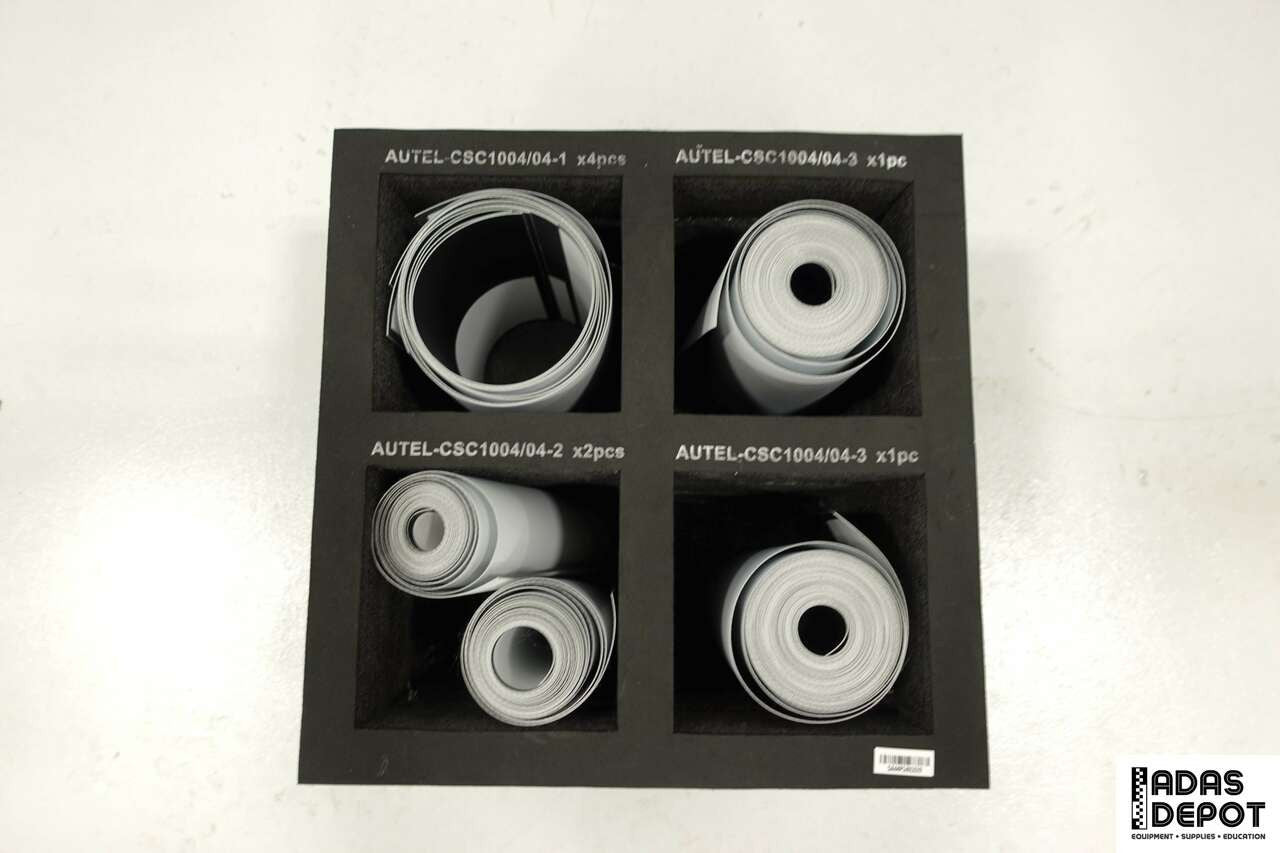

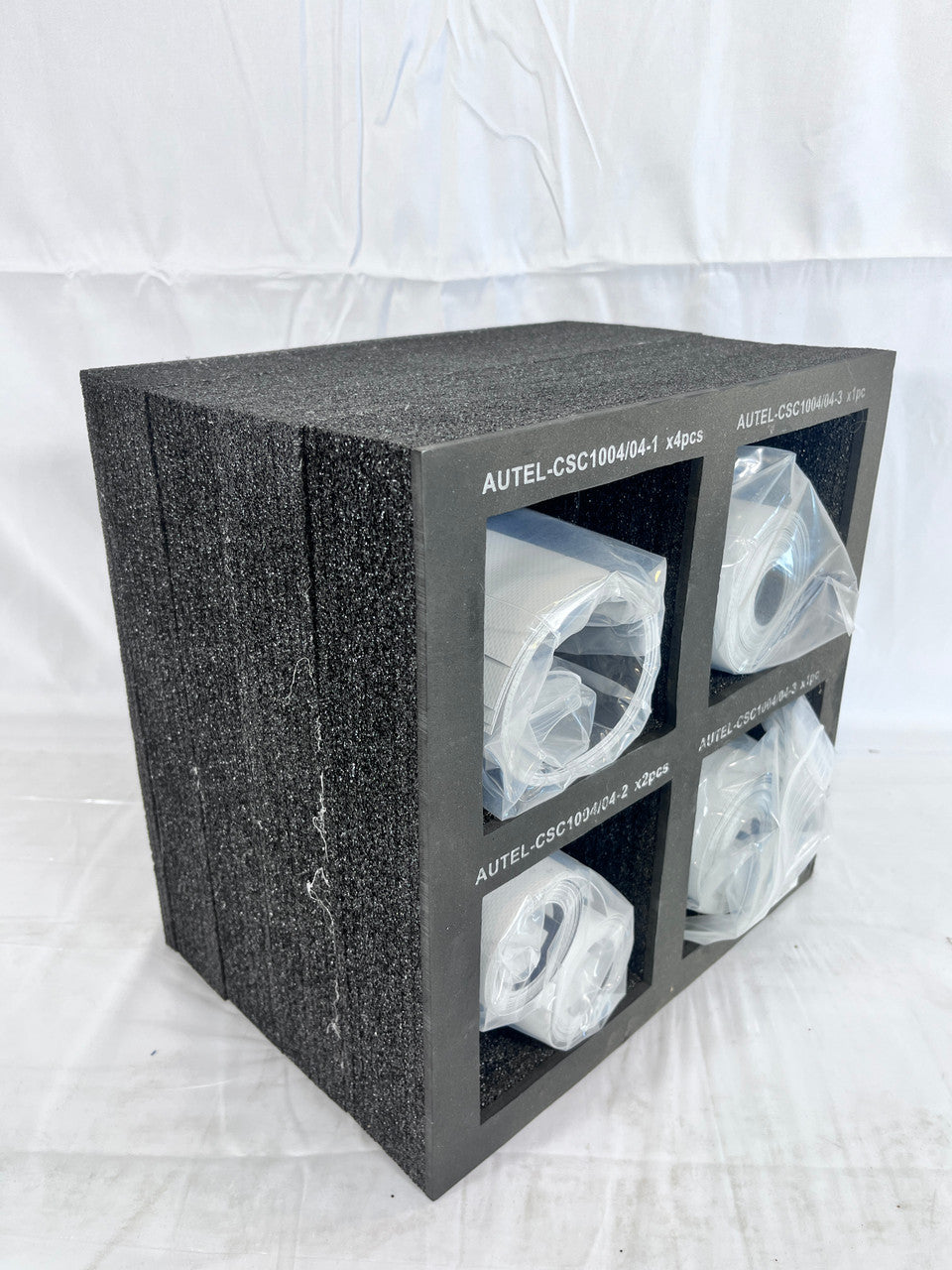

• 1 × Autel Hyundai / Kia 360° AVM Calibration Pattern CSC1004-04
